Low Volt Wiring Diagram for Fit Air Handler and Condenser

Paul Bienvenu

February 03, 2025 15:19 Updated

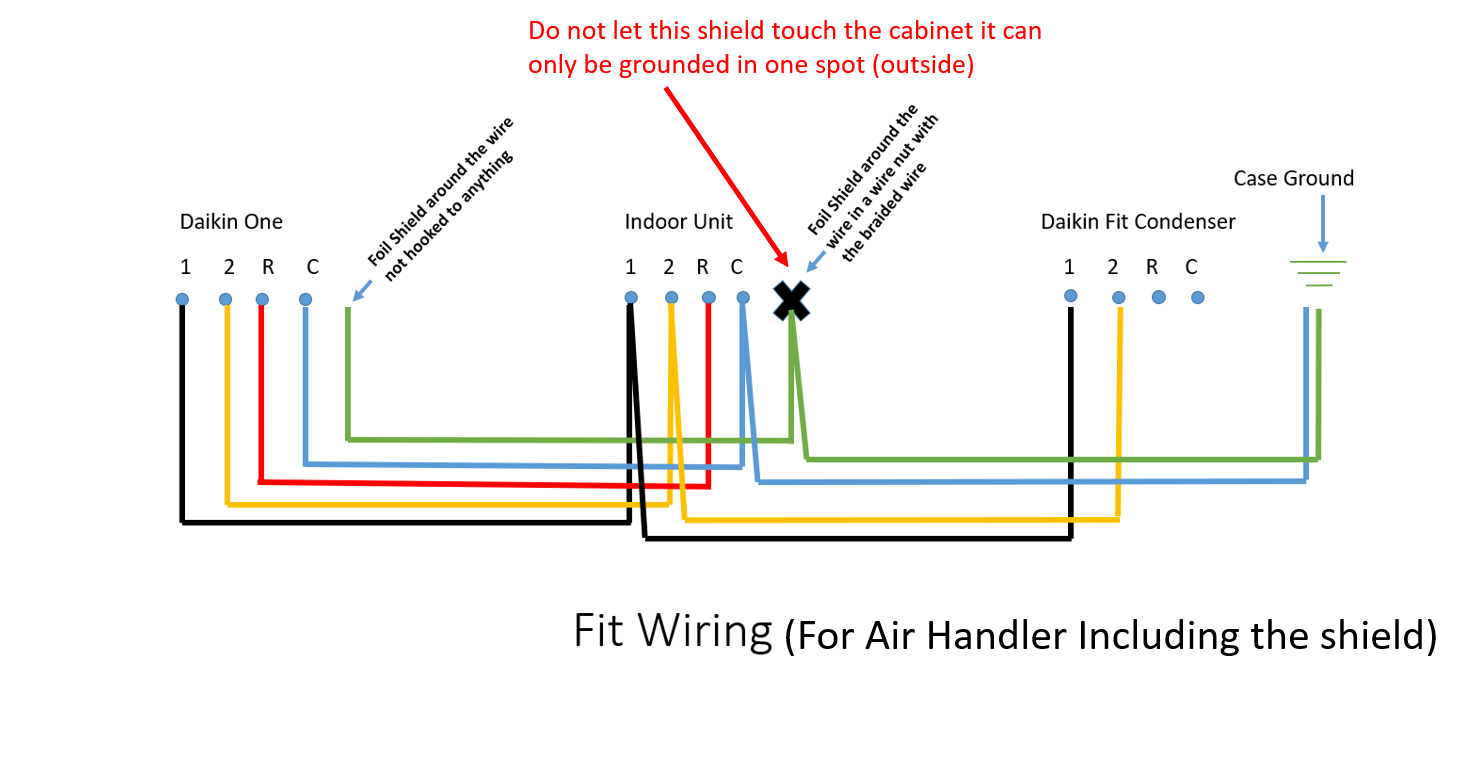

Fit wiring 4.png
